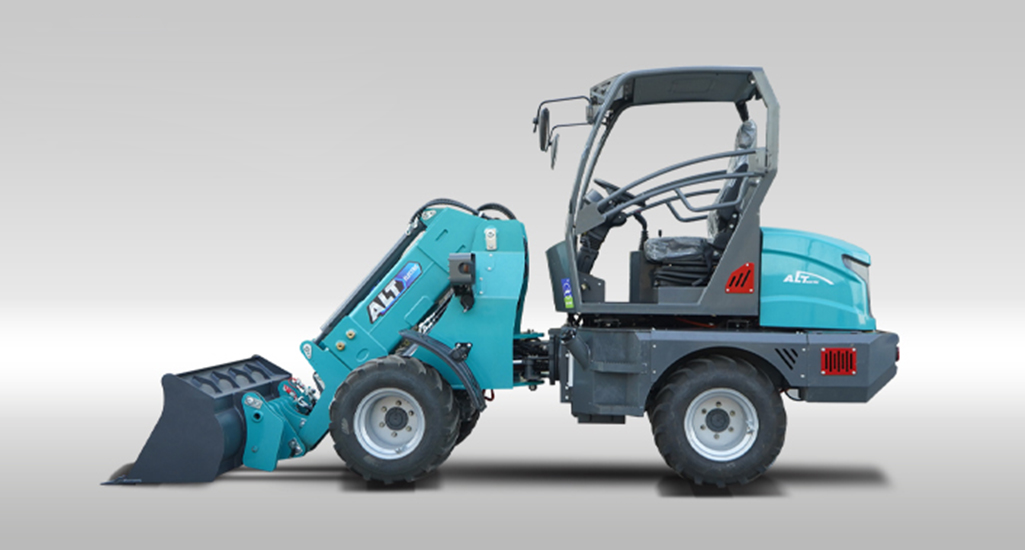

ETL1200 Electric Telescopic Loader Canopy version
-- Powerful Performance
High - torque electric motor provides strong driving force, enabling ETL1200 to handle heavy - duty tasks with ease. Its telescopic arm can reach extended lengths, allowing for flexible material handling in various work scenarios.
--Energy Saving and Environment Friendly
Powered by electricity, ETL1200 zero emissions during operation, which is highly beneficial for environmental protection. Moreover, electric power consumption is relatively low compared to traditional fuel - powered loaders.
-- Easy Maintenance
The electric drive system has fewer moving parts compared to internal combustion engines, resulting in less wear and tear. This simplicity makes maintenance easier
-- 1 set in 1*20GP container 4 sets in 1*40HQ container)
| rated loading weight(kg) | 1200 |
| operation weight(kg) | 3500 ( Canopy version) / 3800 ( Closed cabin version) |
| bucket capacity(m³）/bucket width(mm) | 0.45 / 1730 |
| working time（h)/charging time(h) | 5 / 8 |
| walking speed | low speed 10/high speed 20 |
| min.ground distance(mm) | 210 |
| overall length*width*height(mm) | 4880*1730*2510 |
| wheel base(mm)/ wheel thread(mm) | 1940 / 1185 |
| steering angle / dumping angle | 40°/ 30° |
| dumping distance(shortest/longest)(mm) | 850/1220 |
| dumping Height(lowest/highest)(mm) | 2560/3200 |
| lifting Height(Lowest/Highest)(mm) | 3044/3720 |
| battery quantity & model | 8 pcs TEV12-265 |
| battery type | lead-acid high performance maintenance free |
| battery capacity/set(kw) /Rated Voltage(V) | 25.4/96 |
| electric system voltage(v) | 12 |
| hydraulic power supply mode | AC |
| hydraulic system voltage(v）/power capacity(kw) | 96/7.5 |
| hydraulic system emission(ml/r)/ pressure(MPa) | 25 / 16 |
| hydraulic motor speed(r/min) | low speed 800/high speed 2300 |
| steering system type/pressure(MPa) | hydraulic steering /14 |
| steering cylinder model / quantity | 63 *190mm/2 |
| walking system power supply mode | AC |
| walking system voltage(v)/power capacity(kw) | 96/15 |
| walking motor quantity | 2 |
| tyre model /tyre pressure(MPa) | 31X15.5-15 / 0.25 |
| working brake/parking brake | drum oil brake/ drum handbrake |
