620C Diesel wheel loader C series high-end version

  • Overview
  • Related Products

Product category: wheel loader

Name: 620C Diesel wheel loader C series high-end version



Product brief description:

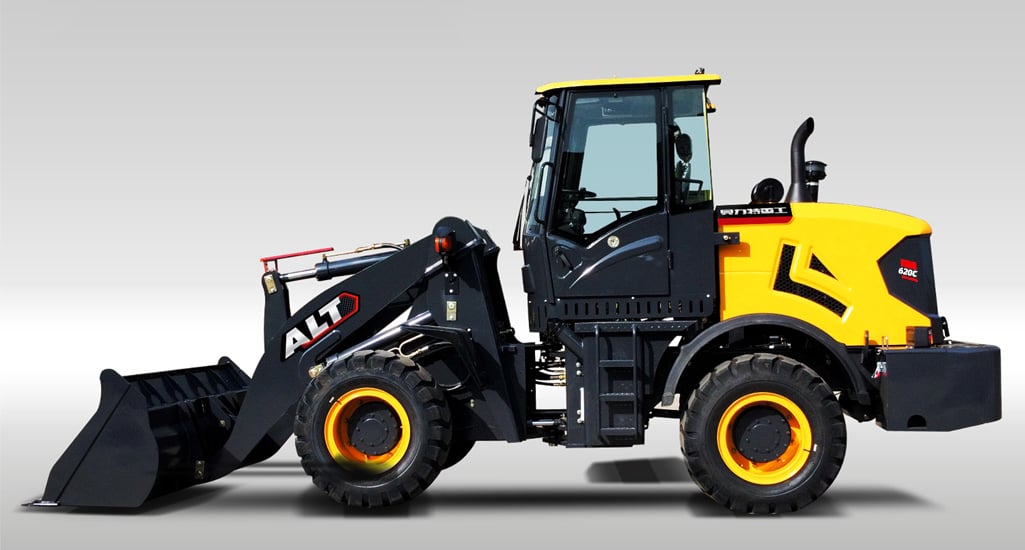

详情 图1.jpg

620C Diesel wheel loader C series high-end version



-- CE, ROPS/FOPS certificated;

-- xinchai engine, EPA, Euro 5 engines can be optional;

-- hydraulic joystick control forward, backward easier operation, mechanical joystick control can be optional;

-- Well-designed quick hitch can be used for changing different attachments;

-- Different color can be painted: red, green, blue, yellow as u like;

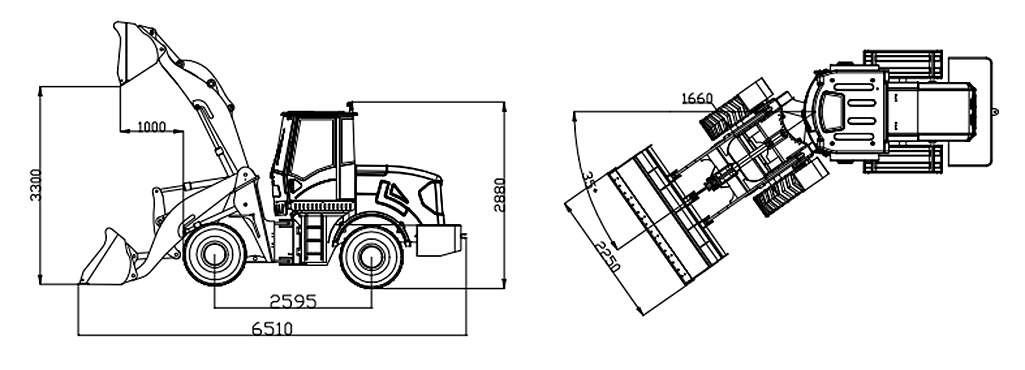

详情页 图2.png



Rated load(Kg) 2000
Bucket capacity(m³) 1.1
Overall weight(Kg) 5860
Max. dumping height(mm) 3300
Dumping distance(mm) 1000
Gearbox model 280F
Transmission mode Hydraulic torque converter
Low gear (Km/h) 6
High gear (Km/h) 18
Max. steering angle ±35°
Length(mm) 6510
Width(mm) 2250
Height(mm) 2880
Bucket width(mm) 2250
Wheel base(mm) 2595
Wheel thread(mm) 1660
Min. ground clearance(mm) 310
Engine model 4102turbo
Engine brand YUNNEI
Rated power(kw) 76
Rated speed(r/min) 2400
Alxe model heavy big hub reduction axle
Tyre 16/70-20
Working brake air push oil
Parking brake Handbrake clamp disc type
