618C Diesel wheel loader C series high-end version

  • Overview
  • Related Products

Product category: wheel loader

Name: 618C Diesel wheel loader C series high-end version



Product brief description:



详情页 图1.jpg

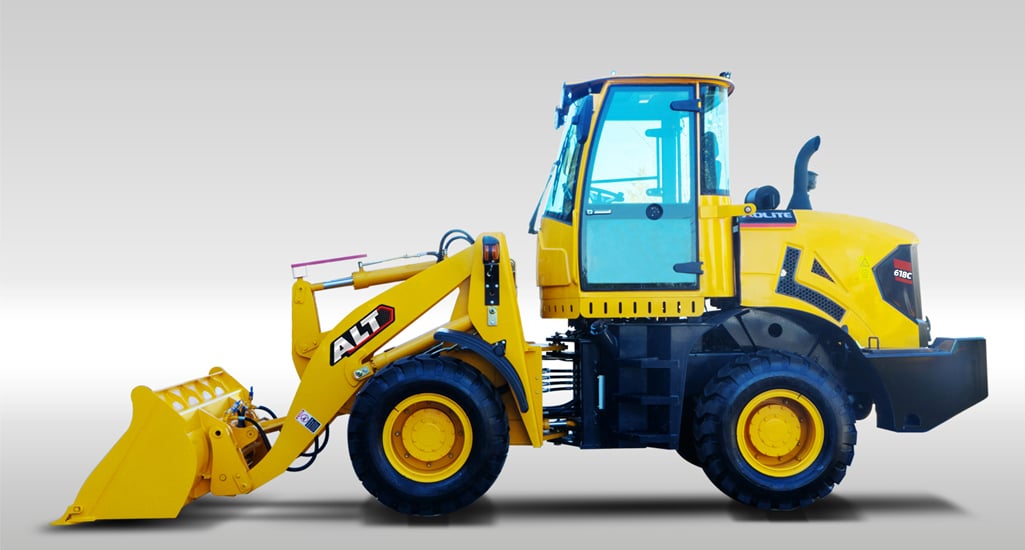

618C Diesel wheel loader C series high-end version



-- CE, ROPS/FOPS certificated;

-- xinchai engine, EPA, Euro 5 engines can be optional;

-- hydraulic joystick control forward, backward easier operation, mechanical joystick control can be optional;

-- Well-designed quick hitch can be used for changing different attachments;

-- Different color can be painted: red, green, blue, yellow as u like;



Rated load(Kg) 1800
Bucket capacity(m³) 1.0
Overall weight(Kg) 4780
Max. dumping height(mm) 3100
Dumping distance(mm) 1075
Gearbox model 265F
Transmission mode Hydraulic torque converter
Low gear (Km/h) 6
High gear (Km/h) 20
Max. steering angle ±35°
Length(mm) 6146
Width(mm) 2070
Height(mm) 2880
Bucket width(mm) 2070
Wheel base(mm) 2310
Wheel thread(mm) 1570
Min. ground clearance(mm) 300
Engine model 4100turbo
Engine brand YUNNEI
Rated power(kw) 65
Rated speed(r/min) 2400
Alxe model Light big hub reduction axle
Tyre 16/70-20
Working brake air push oil
Parking brake Handbrake clamp disc type
