615C Diesel wheel loader C series high-end version

  • Overview
  • Related Products

Product category: wheel loader

Name: 615C Diesel wheel loader C series high-end version



Product brief description:

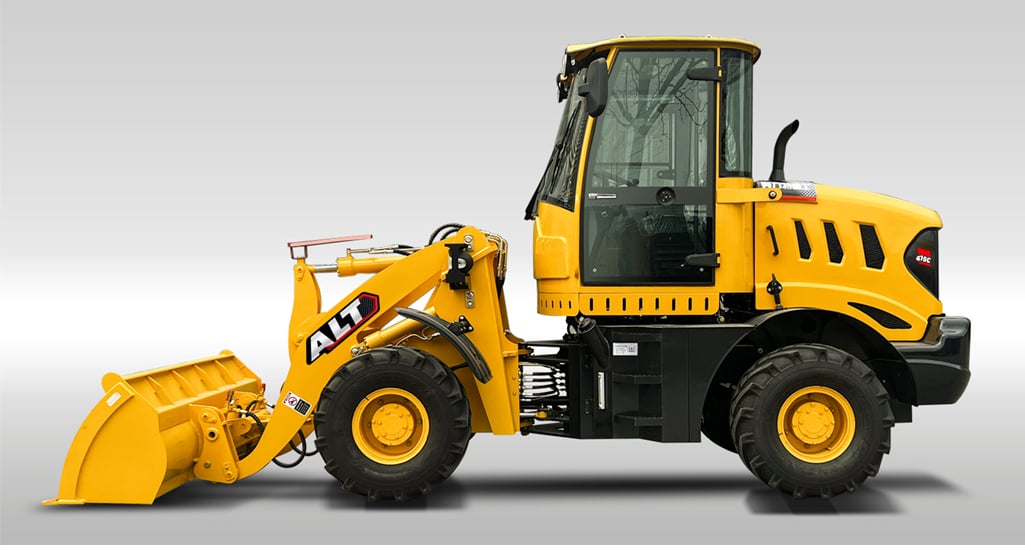

详情页 图1.jpg

615C Diesel wheel loader C series high-end version



-- CE, ROPS/FOPS certificated;

-- xinchai engine, EPA, Euro 5 engines can be optional;

-- hydraulic joystick control forward, backward easier operation, mechanical joystick control can be optional;

-- Well-designed quick hitch can be used for changing different attachments;

-- Different color can be painted: red, green, blue, yellow as u like;

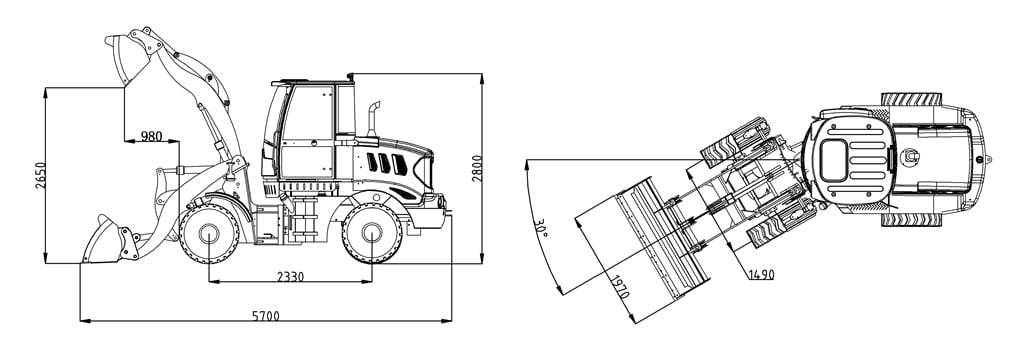

详情页 图2.jpg



Rated load(Kg) 1500
Bucket capacity(m³) 0.7
Overall weight(Kg) 4040
Max. dumping height(mm) 2620
Dumping distance(mm) 980
Gearbox model 265Y
Transmission mode Hydraulic torque converter
Low gear (Km/h) 5
High gear (Km/h) 18
Max. steering angle ±28°
Length(mm) 5700
Width(mm) 1980
Height(mm) 2800
Bucket width(mm) 1970
Wheel base(mm) 2330
Wheel thread(mm) 1490
Min. ground clearance(mm) 260
Engine model 490turbo
Engine brand YUNNEI
Rated power(kw) 58
Rated speed(r/min) 2400
Alxe model small hub reduction axle
Tyre 23.5-16
Working brake air push oil
Parking brake Handbrake clamp disc type
